ELECTRO-VOICE F.01U.265.571

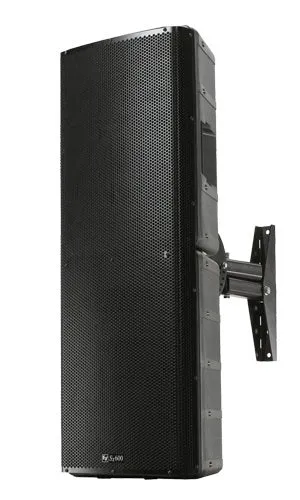

The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted.
Features
- Designed for Commercial Sound/Life Safety, Performance & Sports Venues, Stadium Systems, and other applications.
- Two-element vertical line array
- For highest output outdoors
- Very high sensitivity (105 dB/1W/1m)
- High intelligibility
- Two 12” woofers
- DH2T driver on 65° x 65° Varipath horn
- All-weather cabinet
- SuperSAM mounting, 60° x 180° adjustable
- Waterproof connection by SJO cable with gland nut
- Internal 600 W transformer available (SX600PIX)
| Chassis Size | 304.8 mm (12") |
| Color | Black |
| Directivity Index | 11.3 dB |
| Speaker Type | Two-Way |
| Speaker Type | Fullrange |
| Frequency Response (-10 dB) | 70 - 18000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 90 Hz |
| Sensitivity 1 W/1 m | 105 dB |
| Max. SPL/1m (calc) | 138 dB |
| Coverage (Nominal -6 dB) H° |
65 ° |
| Coverage (Nominal -6 dB) V° |
65 ° |
| System Power Handling (Continuous/Program/Peak) | 600 Watts |
| LF Transducer | DL12BFH |
| MF Transducer | ND12A |
| HF Transducer | DH2T |
| Crossover Frequency | 1800 Hz |
| Nominal Impedance (Passive) | 4 Ω |
| Minimum Impedance | 3.5 Ω |
| Flying | Yes |
| Outdoor | Yes |
| Height | 1163 mm (45.79") |
| Width | 429 mm (16.89") |
| Depth | 312 mm (12.28") |
